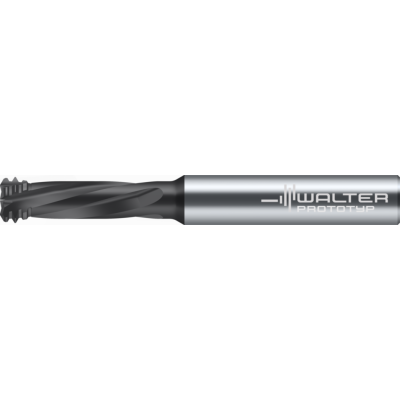

Orbital drill thread milling cutter

TC645-UNC5/8-A1E-WB10TJ NEW 2024

EAN-code: 4063466098987
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-UNC-Icon
D-Tr-LH-rotation-Icon M-48HRC-Icon Tr-2-5xDN-Icon-inch Tr-2-5xDN-Icon Tr-Drallw-Fraesen-20-LH-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for universal application
P
M
K
N
S
H
O
VAT 0% 502,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC645-M-A1E-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
11,6 mm
Connection diameter
d1
12
Thread size
DN
UNC 5/8-11
Usable length
l3
39,7 mm
Overall length
l1
100 mm
Maximum overhang
l4
55 mm
Tool designation
Designation
TC645-UNC5/8-A1E-WB10TJ
Non-usable thread depth
Lc2
3,73 mm
Threads per inch
Gear per inch
11
Number of teeth
Z
4
