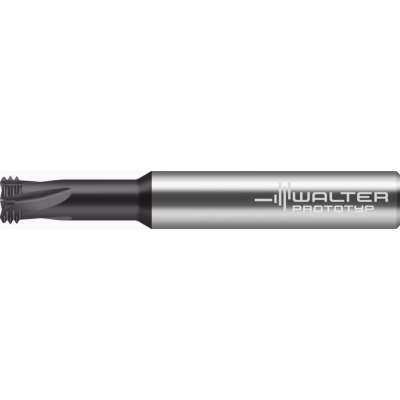

Orbital drill thread milling cutter

TC685-G1/16-A1D-WB10RC NEW 2023

EAN-code: 4063465238100
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-Profil-G-BSP-DIN-Icon
D-Tr-LH-rotation-Icon Tr-2xDN-Icon Tr-44-65HRC-Icon Tr-Drallw-Fraesen-15-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for hardened materials
P
M
K
N
S
H
O
VAT 0% 222,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC685-Z-D-01
Enlarge
Description Symbol Value
Functional length
l4
27 mm
Thread pitch
P
28 mm
Number of teeth
Z
4
Cutting edge diameter
Dc
6,2 mm
Tool designation
Designation
TC685-G1/16-A1D-WB10RC
Overall length
l1
63 mm
usable length
l3
15,446 mm
Thread size
DN
G 1/16-28
Non-usable thread depth
Lc2
1,43 mm
