Products Cutting tools Threading Thread milling Solid carbide drill thread milling cutters G-thread TC685-G-A1D TC685-G1/8-A1D-WB10RC

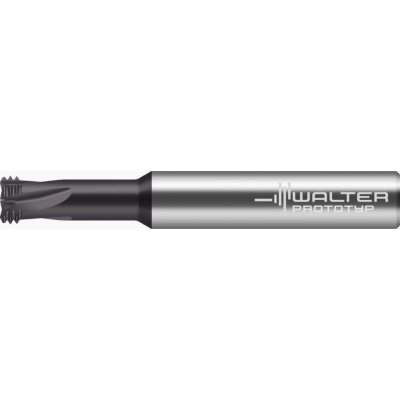

Orbital drill thread milling cutter

TC685-G1/8-A1D-WB10RC NEW 2023

EAN-code: 4063465238117
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-G-BSP-DIN-Icon
D-Tr-LH-rotation-Icon Tr-2xDN-Icon Tr-44-65HRC-Icon Tr-Drallw-Fraesen-15-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for hardened materials
P
M
K
N
S
H
O
VAT 0% 228,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC685-Z-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
8,1 mm
Connection diameter
d1
10
Thread size
DN
G 1/8-28
Usable length
l3
19,456 mm
Overall length
l1
72 mm
Maximum overhang
l4
32 mm
Tool designation
Designation
TC685-G1/8-A1D-WB10RC
Non-usable thread depth
Lc2
1,46 mm
Thread pitch
P
28 mm
Number of teeth
Z
4
