Products Cutting tools Threading Thread milling Solid carbide drill thread milling cutters G-thread TC685-G-A1D TC685-G1/2-A1D-WB10RC

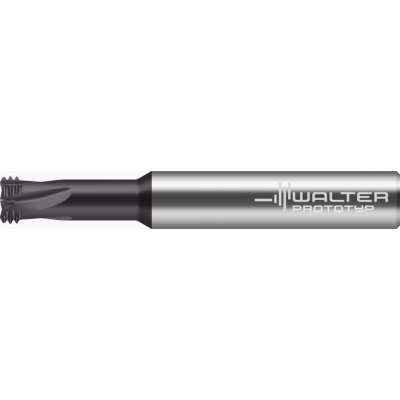

Orbital drill thread milling cutter

TC685-G1/2-A1D-WB10RC NEW 2023

EAN-code: 4063465238131
P-Tr-Blind-Holes-Icon P-Tr-Through-Holes-Icon Tr-chamfer-120-Icon Tr-Profil-G-BSP-DIN-Icon
D-Tr-LH-rotation-Icon Tr-2xDN-Icon Tr-44-65HRC-Icon Tr-Drallw-Fraesen-15-LH-Icon Tr-IKA-Icon
Chamfer, core hole and thread in one operation Orbital drill thread milling cutters for hardened materials
P
M
K
N
S
H
O
VAT 0% 518,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-TR-TC685-Z-D-01
Enlarge
Description Symbol Value
Cutting edge diameter
Dc
15,2 mm
Connection diameter
d1
16
Thread size
DN
G 1/2-14
Usable length
l3
41,91 mm
Overall length
l1
116 mm
Maximum overhang
l4
68 mm
Tool designation
Designation
TC685-G1/2-A1D-WB10RC
Non-usable thread depth
Lc2
2,95 mm
Thread pitch
P
14 mm
Number of teeth
Z
4
Compatible products
Adaptors
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
AB025-J-P-01
AB025-J
MAS-BT JIS B 6339 shrink-fit adaptor
Show variations
AB025-H-P-01
AB025-H
DIN 69893-1 A shrink-fit adaptor
Show variations
AB017-J-P-01
AB017-J
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
AB017-S-P-01
AB017-S
DIN 69871 AD/B hydraulic expansion chuck
Show variations
AB025-S-P-01
AB025-S
DIN 69871 AD/B shrink-fit adaptor
Show variations
AB017-H-P-01
AB017-H
DIN 69893-1 A hydraulic expansion chuck
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Adaptor sleeves for internal cooling
Show variations
AB019 HSK P 01
AB019-H
DIN 69893-1 A slim hydraulic expansion chuck
Show variations
W A AK182 SK P 01
AK182-SK
DIN 69871 hydraulic expansion chuck
Show variations
W A AK182 HSK P 01
AK182-HSK
DIN 69893-1 A hydraulic expansion chuck
Show variations
W A AK182 CAPTO P 01
AK182-C
Walter CaptoTM hydraulic expansion chuck ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
MAS-BT JIS B 6339 hydraulic expansion chuck
Show variations
W A AK530 HSK P 01
A560.H
DIN 69893-1 A shrink-fit adaptor
Show variations
