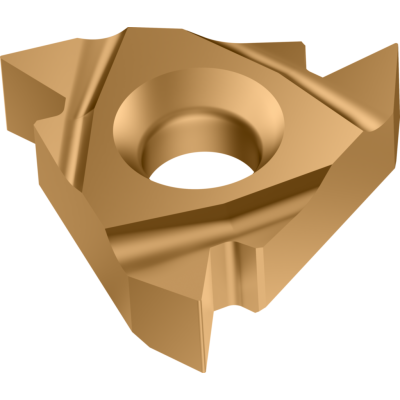

External thread turning inserts – 60° partial profile
TS16-EL-AG60 WMP32G NEW 2024
EAN-code: 4063466362019
P
M
K
N
S
H
O
VAT 0%
25,40 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Actual thread height
h
2,4 mm
Diameter of inscribed circle
d
9,53 mm
Cutting edge length
l
16 mm
Number of teeth
Z
1
Tool designation
Designation
TS16-EL-AG60 WMP32G
Profile spacing ey
Y
1,5 mm
Profile spacing ex
X
1,1 mm
Corner radius
r
0,08 mm
Insert thickness
s
3,47 mm
Threads per inch
TPI [Threads/Inch]
48–8
Thread pitch
TP
0.50–3.0 mm mm
