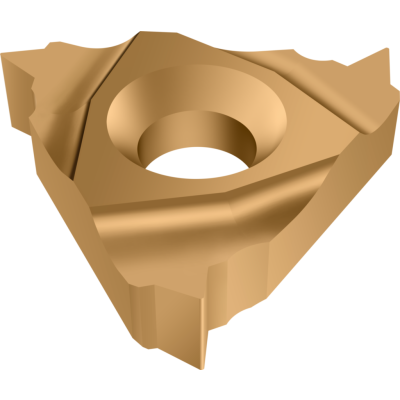

Internal thread turning inserts – full profile, American NPTF 60°
TS16-IR14NPTF WMP32G NEW 2025
EAN-code: 4063466384301
ANSI B1.20.3-1976
ANSI B1.4-1976
P
M
K
N
S
H
O
VAT 0%
25,50 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Diameter of inscribed circle
d
9,53 mm
Cutting edge length
l
16 mm
Number of teeth
Z
1
Tool designation
Designation
TS16-IR14NPTF WMP32G
Profile spacing ey
Y
1,5 mm
Profile spacing ex
X
1,1 mm
Insert thickness
s
3,5 mm
Threads per inch
TPI [Threads/Inch]
14
