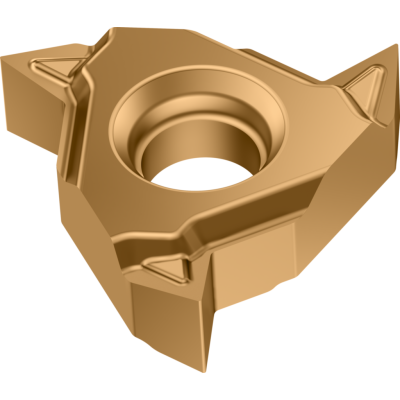

Internal thread turning inserts – 60° partial profile
TS11-IR-A60-F5 WMP32G NEW 2025
EAN-code: 4063466384943
P
M
K
N
S
H
O
VAT 0%
16,97 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Actual thread height
h
1,3 mm
Diameter of inscribed circle
d
6,35 mm
Cutting edge length
l
11 mm
Number of teeth
Z
1
Tool designation
Designation
TS11-IR-A60-F5 WMP32G
Profile spacing ey
Y
0,8 mm
Profile spacing ex
X
0,7 mm
Corner radius
r
0,08 mm
Threads per inch
TPI [Threads/Inch]
16–48
Thread pitch
TP
0.50–1.5 mm
