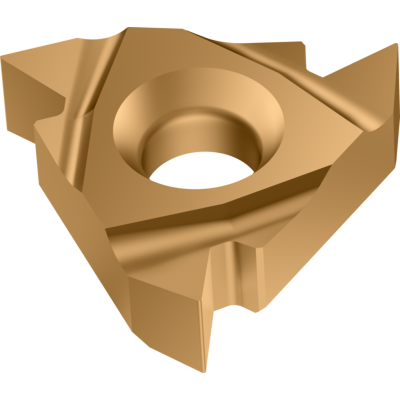

Internal thread turning inserts – 60° partial profile
TS16-IR-G60 WMP22G NEW 2025
EAN-code: 4063466383120
P
M
K
N
S
H
O
VAT 0%
25,50 €
Checking availability
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Technical details
Description
Symbol
Value
Actual thread height
h
2,3 mm
Diameter of inscribed circle
d
9,53 mm
Cutting edge length
l
16 mm
Number of teeth
Z
1
Tool designation
Designation
TS16-IR-G60 WMP22G
Profile spacing ey
Y
1,5 mm
Profile spacing ex
X
1,1 mm
Corner radius
r
0,12 mm
Threads per inch
TPI [Threads/Inch]
8–14
Thread pitch
TP
1.75–3.0 mm
