Ultramini grooving insert 7xD

R006.0100-15/K10F

EAN-code: R006.0100-15/K10F-duemmel

Grooving
D min. 6,0 mm
depth of groove t max. 1,8 mm
overhang length (L1) up to 7x D

VAT 0% 23,90 €

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

The Dümmel Ultramini tool-line is a must for turning smallest bores.
The inside bore machining of small diameters has always been difficult and it is not easy to obtain the ideal tool.
The Ultramini tool-line covers more than 1.000 different standard inserts which could be clamped in only two toolholders.
Of course the complete Ultramini program is available on stock.

Video

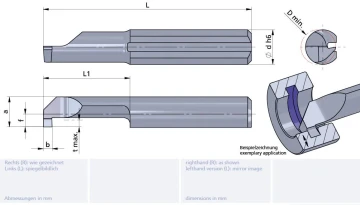

Technical details

Enlarge

Models
R006 0100 15

Description Symbol Value

Minimum diameter

Ø D min.

6 mm

Width

b

1 mm

Tolerance

Tol.

b +0,05

Length

L1

15 mm

Max. depth of cut

t max.

1,8 mm

Dimension

f

2,3 mm

Dimension

a

5,3 mm

Length

L

30 mm

Mounting diameter

Ø d h6

6 mm

Laatu/pinnoite

K10F

Matching tools

660/676/.6

Hand

Right
