Ultramini recessing insert

R510M1008-10/AL41F

EAN-code: R510M1008-10/AL41F-duemmel

Face grooving with corner radius
D min. 5,0 mm
depth of groove t max. 4,0 mm
width of groove up to 2,0 mm

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

The Dümmel Ultramini tool-line is a must for turning smallest bores.
The inside bore machining of small diameters has always been difficult and it is not easy to obtain the ideal tool.
The Ultramini tool-line covers more than 1.000 different standard inserts which could be clamped in only two toolholders.
Of course the complete Ultramini program is available on stock.

Video

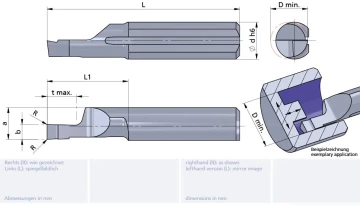

Technical details

Enlarge

Models
R510M1008 10

Description Symbol Value

Minimum diameter

Ø D min.

5 mm

Width

b

1 mm

Tolerance

Tol.

b +0,05

Radius

R

0,05 mm

Length

L1

11 mm

Max. depth of cut

t max.

2 mm

Dimension

a

4,3 mm

Length

L

26 mm

Mounting diameter

Ø d h6

5 mm

Laatu/pinnoite

AL41F

Matching tools

645/650/.5

Hand

Right
