Typ 62PM

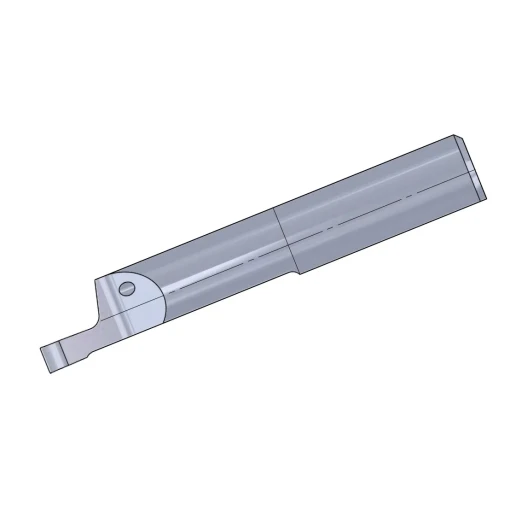

Typ 62PM image

Dümmel Typ 62PM
Ultramini Performanceline recessing insert

Face grooving in pivots, with corner radius and through coolant
D min. 6,0 mm
depth of groove t max. 6,0 mm
width of groove up to 3,0 mm

b mm

Tol.

R mm

L1 mm
L62PM1006-20/P04C

b mm
1

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
L62PM1506-20/P04C

b mm
1,5

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
L62PM2006-20/P04C

b mm
2

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
L62PM2506-20/P04C

b mm
2,5

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
L62PM3006-20/P04C

b mm
3

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
R62PM1006-20/P04C

b mm
1

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
R62PM1506-20/P04C

b mm
1,5

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
R62PM2006-20/P04C

b mm
2

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
R62PM2506-20/P04C

b mm
2,5

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
R62PM3006-20/P04C

b mm
3

Tol.
b +0,05

R mm
0,1

L1 mm
30

40,15 €

Order
