Ultramini toolholder Premiumline

687.PT20-D

EAN-code: 687.PT20-D-duemmel

Grooving, boring and profiling starting at Ø 0,2 mm
toolholder, Premiumline with improved cooling
Ø 16 - 20 mm
for insert with D min. 6,8 - 7,8 mm

VAT 0% 124,25 €

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

The Dümmel Ultramini tool-line is a must for turning smallest bores.
The inside bore machining of small diameters has always been difficult and it is not easy to obtain the ideal tool.
The Ultramini tool-line covers more than 1.000 different standard inserts which could be clamped in only two toolholders.
Of course the complete Ultramini program is available on stock.

Video

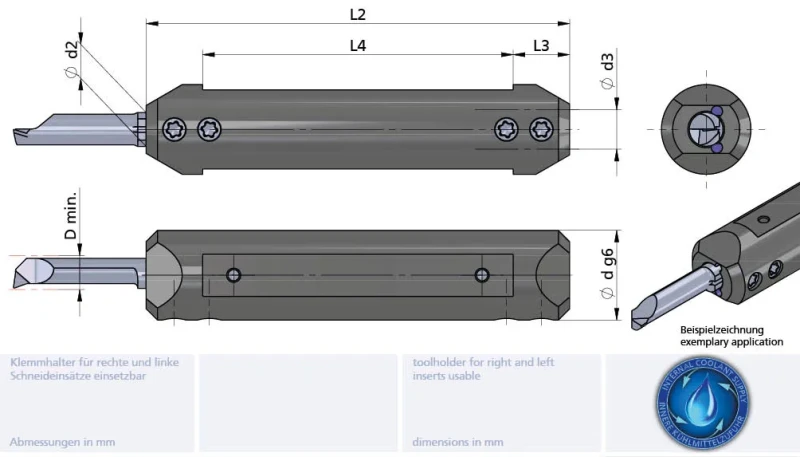

Technical details

Enlarge

Models
687 PT20 D

Description Symbol Value

Diameter

Ø d2

7 mm

Diameter

Ø d3

8 mm

Connection diameter

Ø d g6

20 mm

Length

L2

90 mm

Length

L3

10 mm

Length

L4

70 mm

Clamping screw

A.GST011

Wrench

T10F

Tightening torque

1,2 Nm
