Typ TR 00

Typ TR 00 image

Dümmel Typ TR 00

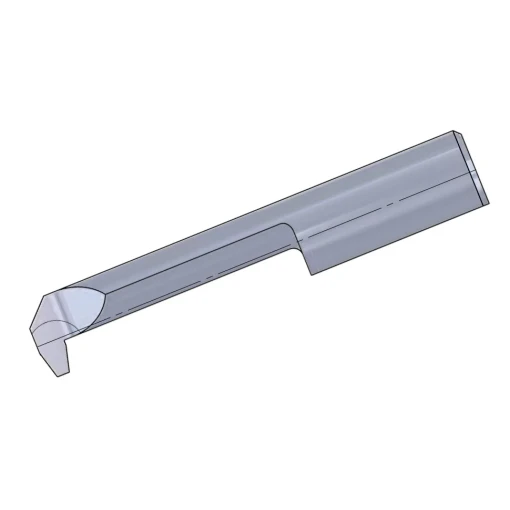

Ultramini threading insert – partial profile, TR 30°

Trapezoidal thread, partial profile, internal
D min. 7,0 mm
pitch P = 2,0 - 3,0

P mm

b mm

L1 mm

t mm
L007.1220-22/AL41F

P mm
2

b mm
0,6

L1 mm
22

t mm
1,25

34,20 €

Order
L007.1220-30/AL41F

P mm
2

b mm
0,6

L1 mm
30

t mm
1,25

41,45 €

Order
L007.1730-22/AL41F

P mm
3

b mm
1

L1 mm
22

t mm
1,75

34,20 €

Order
L007.1730-30/AL41F

P mm
3

b mm
1

L1 mm
30

t mm
1,75

41,45 €

Order
R007.1220-22/AL41F

P mm
2

b mm
0,6

L1 mm
22

t mm
1,25

34,20 €

Order
R007.1220-30/AL41F

P mm
2

b mm
0,6

L1 mm
30

t mm
1,25

41,45 €

Order
R007.1730-22/AL41F

P mm
3

b mm
1

L1 mm
22

t mm
1,75

34,20 €

Order
R007.1730-30/AL41F

P mm
3

b mm
1

L1 mm
30

t mm
1,75

41,45 €

Order
