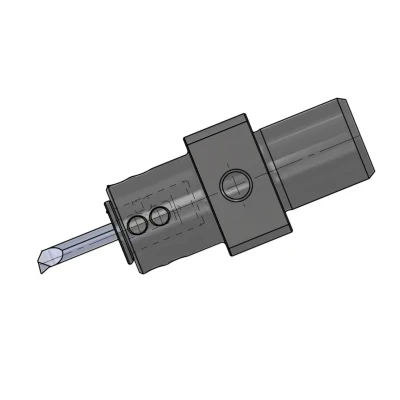

Ultramini toolholder Swiss Type

UMHB-RH1233HA20

EAN-code: UMHB-RH1233HA20-duemmel

Grooving, boring and profiling starting at Ø 0,2 mm
toolholder and reduction bush
for rear end machining on Swiss type lathes
Ø 22 - 33 mm
for insert D min. ≥ 0,2 mm

VAT 0% 197,95 €

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

The Dümmel Ultramini tool-line is a must for turning smallest bores.
The inside bore machining of small diameters has always been difficult and it is not easy to obtain the ideal tool.
The Ultramini tool-line covers more than 1.000 different standard inserts which could be clamped in only two toolholders.
Of course the complete Ultramini program is available on stock.

Video

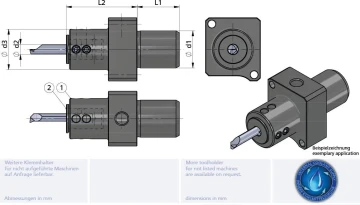

Technical details

Enlarge

Models
UMHB RH1233HA20

Description Symbol Value

Diameter

Ø d1

33 mm

Diameter

Ø d3

24 mm

Length

L1

37 mm

Length

L2

34,8 mm

Clamping screw

A.GST012

Wrench

T10F

Tightening torque

1,2 Nm
