Typ WW 10

Typ WW 10 image

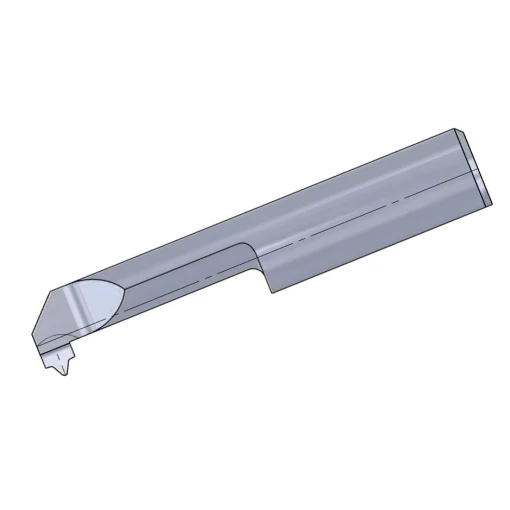

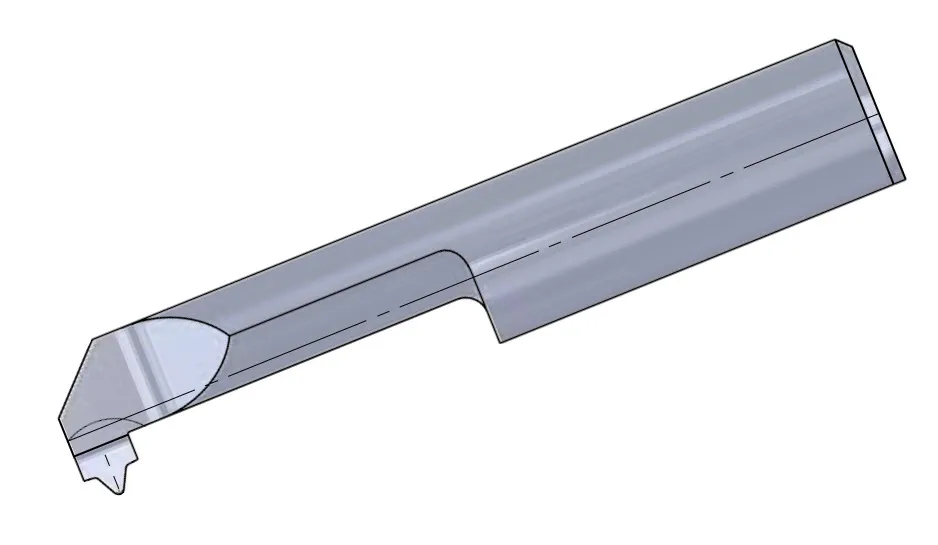

Dümmel Typ WW 10
Ultramini threading insert – full profile, WW 55°

Whitworth thread, full profile, internal
D min. 6,0 mm

P "

R mm

L1 mm

H1 mm
L106.5519-15/AL41F

P "
19

R mm
0,18

L1 mm
15

H1 mm
0,86

28,40 €

Order
L106.5522-15/AL41F

P "
22

R mm
0,16

L1 mm
15

H1 mm
0,74

28,40 €

Order
L106.5528-15/AL41F

P "
28

R mm
0,12

L1 mm
15

H1 mm
0,58

28,40 €

Order
R106.5519-15/AL41F

P "
19

R mm
0,18

L1 mm
15

H1 mm
0,86

28,40 €

Order
R106.5522-15/AL41F

P "
22

R mm
0,16

L1 mm
15

H1 mm
0,74

28,40 €

Order
R106.5528-15/AL41F

P "
28

R mm
0,12

L1 mm
15

H1 mm
0,58

28,40 €

Order
