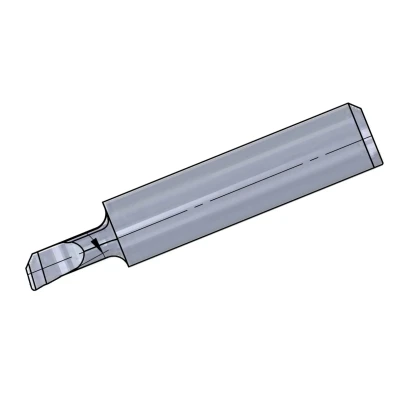

Ultramini Xtraline insert

LX050.4-16R20/K10F

EAN-code: LX050.4-16R20/K10F-duemmel

Boring and profiling with through coolant, chipbreaker and extra solid construction
D min. 1,0 - 7,0 mm

VAT 0% 24,80 €

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

Xtraline
The Dümmel Xtraline is an extension of the current Ultramini System with a very solid geometry.
It comes also with the internal cooling bore, special carbide and of course an optimized cutting edge and shank geometry.
The new Lines are fitting into the current Ultramini tool holders.
With a high variety of different radius Version of this insert, best surface qualities are guaranteed.

Video

Technical details

Enlarge

Description Symbol Value

Minimum diameter

Ø D min.

4 mm

Radius

R

0,2 mm

Pituus

L1

16 mm

Max. depth of cut

t max.

0,2 mm

Dimension

f

1,6 mm

Dimension

a

3,6 mm

Length

L

30 mm

Kiinnityshalkaisija

Ø d h6

4 mm

Laatu/pinnoite

K10F

Matching tools

640/645/.4

Hand

Left
