Products Cutting tools Turning ISO turning Turning toolholders Positive basic shape WL.. W1011 – Screw clamping W1011-R 0658048913
Shank tool – Copy turning system

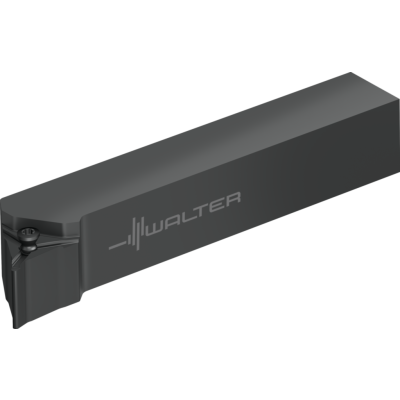

W1011-2525R-WL25 NEW 2021

EAN-code: 0658048913
T-Ex-W1011-107-Icon T-Ex-W1011-107-2-Icon T-Ex-W1011-113-Icon T-Ex-W1011-93-Icon
T-WSP-WL-Icon
VAT 0% 139,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-W1011-R-EX-D-01
Enlarge
Description Symbol Value
Shank width
B
25 mm
Orthogonal rake angle
γ
0 °
Shank height
h = h1
25 mm
Inclination angle
λs
0 °
Overall length
l1
150 mm
Functional length
l4
33,5 mm
Tool designation
Designation
W1011-2525R-WL25
Insert seat size
25
Possible indexable inserts
Type
WL25..
Functional width
f
32 mm
Compatible products
Products
Adaptors
Assembly parts
WL-RCN-TM-3-WTZ-P-01
WL-RCN-TM-3
CBN – Indexable inserts copy turning system
Show variations
WL-VCL-TM-3-WTZ-P-01
WL-VCL-TM-3
CBN – Indexable inserts copy turning system
Show variations
WL-VCR-TM-3-WTZ-P-01
WL-VCR-TM-3
CBN – Indexable inserts copy turning system
Show variations
WL-VCN-TM-3-WTZ-P-01
WL-VCN-TM-3
CBN – Indexable inserts copy turning system
Show variations
WL-VCR-FP4-TTG2-P-01
WL-VCR-FP4
Indexable inserts copy turning system
Show variations
WL-VCL-FP4-TTG2-P-01
WL-VCL-FP4
Indexable inserts copy turning system
Show variations
W T WL VCL FM4 SILVER P 01
WL-VCL-FM4
Indexable inserts copy turning system
Show variations
W T WL VCR FM4 SILVER P 01
WL-VCR-FM4
Indexable inserts copy turning system
Show variations
W T WL VCN FM4 SILVER P 01
WL-VCN-FM4
Indexable inserts copy turning system
Show variations
WL-VCN-FP4-TTG2-P-01
WL-VCN-FP4
Indexable inserts copy turning system
Show variations
W T WL VCR MM4 SILVER P 01
WL-VCR-MM4
Indexable inserts copy turning system
Show variations
WL-VCR-MP4-TTG2-P-01
WL-VCR-MP4
Indexable inserts copy turning system
Show variations
W-T-WL-VCN-MM4-SILVER-P-01
WL-VCN-MM4
Indexable inserts copy turning system
Show variations
WL-VCN-MP4-TTG2-P-01
WL-VCN-MP4
Indexable inserts copy turning system
Show variations
W T WL VCL MM4 SILVER P 01
WL-VCL-MM4
Indexable inserts copy turning system
Show variations
WL-VCL-MP4-TTG2-P-01
WL-VCL-MP4
Indexable inserts copy turning system
Show variations
WL-RCN-MU6-TTG2-P-01
WL-RCN-MU6
Indexable inserts copy turning system
Show variations
W A A2121 P VDI P 01
A2121-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2121 C P P 01
A2121-CAPTO-P
Walter CaptoTM – Radial adaptor
Show variations
W A A2120 VDI25 P P 01
A2120-VDI-P
VDI adaptor – DIN 69880 shank tools
Show variations
W A A2120 DO25 P P 01
A2120-DO-P
Doosan adaptor – DIN 69880 shank tools
Show variations
W A A2120 C P P 01
A2120-CAPTO-P
Walter CaptoTM – Axial adaptor
Show variations
W A A2120 BT45 P 01
A2120-BMT-P
BMT adaptor – DIN 69880 shank tools
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
