Shank tool – Radial grooving

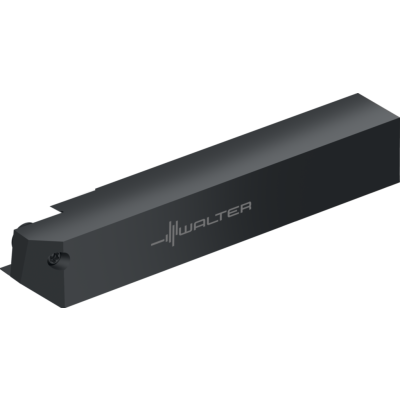

W2011-1212L-WT26 NEW 2024

EAN-code: 4063465535193
T-EX-Backturning-WT26-Icon T-EX-Forwardturning-WT26-Icon T-EX-Parting-WT26-Icon T-Ex-Thread-Grooving-Icon T-EX-Turning-WT26-Icon
T-Swisstype-M-Icon T-WSP-WT-Icon
Screw clamping For Swiss Machining
VAT 0% 101,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-W2011-L-WT-D-01
Enlarge
Description Symbol Value
Shank width
b
12 mm
Maximum cutting depth
Tmax
9 mm
Indexable insert width
s
0.5 - 3
Shank height
h = h1
12 mm
Overall length
l1
125 mm
Maximum overhang
l4
27 mm
Tool designation
Designation
W2011-1212L-WT26
Possible indexable inserts
Type
WT26..
Functional width
f
12 mm
Compatible products
Products
Assembly parts
WT-L-EL-PART-GOLD-P-01
WT_L_ER_PART
External thread turning inserts – 60° partial profile
Show variations
P
M
K
N
S
H
O
WT-L-EL-VOLL-ISO-GOLD-P-01
WT_L_EL_VOLL_ISO
External thread turning inserts – full profile, ISO metric 60°
Show variations
P
M
K
N
S
H
O
WT-L-N-UA8-GOLD-P-01
WT-L-N-UA8
Grooving and recessing – cutting inserts
Show variations
P
M
K
N
S
H
O
WT-L-N-RA8-GOLD-P-01
WT-L-N-RA8
Grooving and copy turning – cutting inserts
Show variations
P
M
K
N
S
H
O
WT-L-R-CD8-GOLD-P-01
WT-L-R-CD8
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
WT-L-N-CD8-GOLD-P-01
WT-L-N-CD8
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
WT-L-N-GD8-GOLD-P-01
WT-L-N-GD8
Grooving and parting off – cutting inserts
Show variations
P
M
K
N
S
H
O
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Screws with head
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Key
Show variations
