Shank tool – Radial grooving

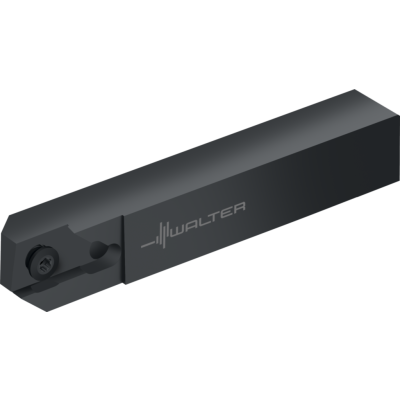

W2011-1616R-WT26 NEW 2024

EAN-code: 4063465535254
T-EX-Backturning-WT26-Icon T-EX-Forwardturning-WT26-Icon T-EX-Parting-WT26-Icon T-Ex-Thread-Grooving-Icon T-EX-Turning-WT26-Icon
T-Swisstype-M-Icon T-WSP-WT-Icon
Screw clamping For Swiss Machining
VAT 0% 98,00 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-W2011-R-WT-D-01
Enlarge
Description Symbol Value
Shank width
B
16 mm
Max. depth of cut
Tmax
9 mm
Indexable insert width
s
0,5 mm
Shank height
h = h1
16 mm
Overall length
l1
125 mm
maximum overhang
l4
27 mm
Tool designation
Designation
W2011-1616R-WT26
Possible indexable inserts
Type
WT26..
Functional width
f
16 mm
Compatible products
Products
WT-R-R-VG8-GOLD-P-01
WT-R-R-VG8
Reverse turning - cutting inserts
Show variations
WT-R-N-UA8-GOLD-P-01
WT-R-N-UA8
Grooving and recessing – cutting inserts
Show variations
WT-R-R-CD8-GOLD-P-01
WT-R-R-CD8
Grooving and parting off – cutting inserts
Show variations
WT-R-N-CD8-GOLD-P-01
WT-R-N-CD8
Grooving and parting off – cutting inserts
Show variations
WT-R-N-GD8-GOLD-P-01
WT-R-N-GD8
Grooving and parting off – cutting inserts
Show variations
