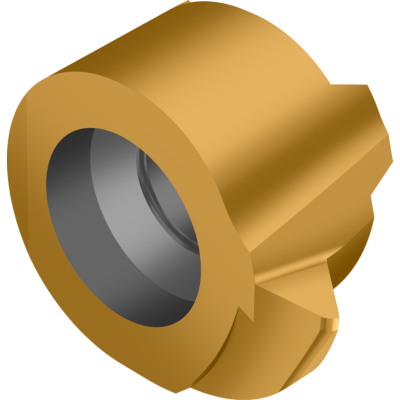

Exchangeable head – Copy turning

WE05-C07-093R02 WSM23X NEW 2024

EAN-code: 4063466433375
T-In-WE-C-Icon
P
M
K
N
S
H
O
VAT 0% 22,10 €
Checking availability
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-T-WE-C-R-D-01
Enlarge
Description Symbol Value
Maximum cutting length
APMX
0,3 mm
Connection diameter
d1
5
Minimum bore diameter
Dmin
7 mm
Feed per revolution
f
0.02–0.10 mm
Functional length
l4
3,4 mm
Tool designation
Designation
WE05-C07-093R02 WSM23X
Corner radius
r
0,2 mm
Functional width
f
4,15 mm
Compatible products
Adaptors
W3270-E-INNEN-WE-P-01
W3270-E-INNEN-WE
Boring bar for exchangeable head
Show variations
W3270-A-INNEN-WE-P-01
W3270-A-INNEN-WE
Boring bar for exchangeable head
Show variations
