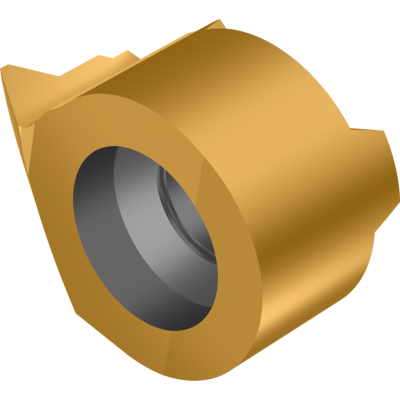

Exchangeable head – Full profile, ISO metric 60°

WE07-IL10-ISO250 WSM23X NEW 2024

EAN-code: 4063466435096

VAT 0% 27,80 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

Description Symbol Value

Connection diameter

d₁

Minimum hole diameter

D_min

10 mm

Thread height

1,35 mm

Thread height difference

0,27 mm

Functional length

l₄

2,4 mm

Maximum projection length

l₂₀

3,8 mm

Tool designation

Designation

WE07-IL10-ISO250 WSM23X

Thread pitch

2,5

Functional width

5,8 mm
