Positive rhombic

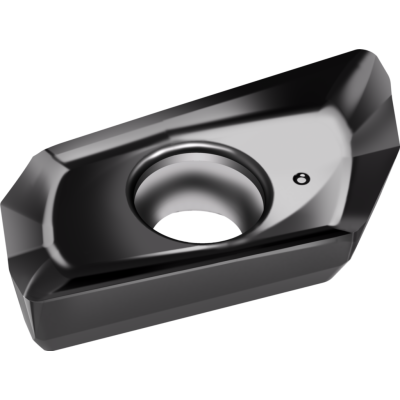

ZDGT150404R-K85 WNN15

EAN-code: 0797995789

For Walter M2131 ramping milling cutters

P

M

K

N

S

H

O

VAT 0% 31,50 €

Checking availability

You need to log in before purchasing. Request credentials here.

Ask about this product

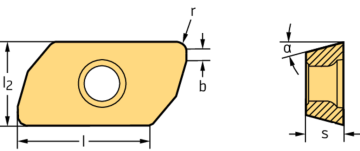

Description Symbol Value

Clearance angle major

α

15 °

Wiper cutting edge length

b

1,2 mm

Number of cutting edges

2

Cutting edge length

l

16,2 mm

Designation

ZDGT150404R-K85 WNN15

Radius

r

0,4 mm

Insert thickness

s

4,76 mm

Indexable insert tolerance class

Tolerance class

G

Indexable insert width

l₂

10,5 mm
