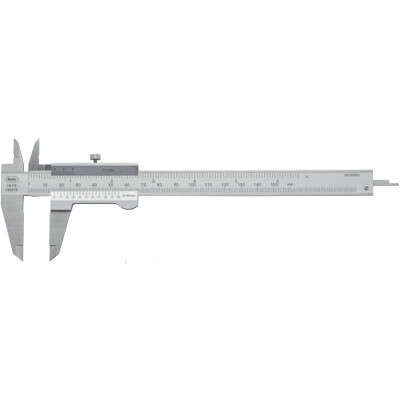

Analog caliper with locking screw

4100422DKS

EAN-code: 4100422DKS-Mahr
Mahr icon 12 Mahr icon 2
VAT 0% 264,00 €
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

FEATURES
• Vernier and scale have a satin chrome finish for glare free reading
• Locking screw above
• Measuring surfaces made of steel
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Raised guideway for the protection of the scale
• Package contains: thread table, case

Technical details
Description Symbol Value
Weight
WT
0.91100000000000003 kg
Measuring range
0 - 300 mm
Graduation value
0,05 mm
Error limit
0,05 mm
Standard
DIN 862
Depth rod
Rectangular
Calibration certificate
DAkkS
Jaw length
a
16 mm
Jaw length
b
64 mm
Jaw length
c
23 mm
Length
d
404 mm
Width
e
20 mm
Leveys
f
4,8 mm
