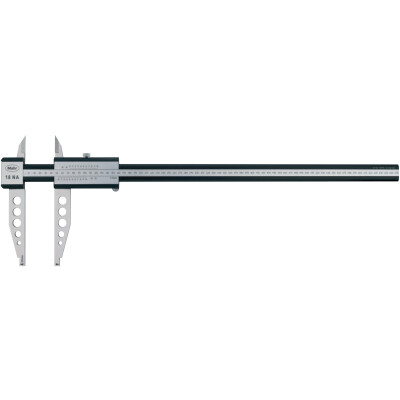

Analog workshop caliper
4112305
EAN-code: 4112305-Mahr
Ask about this product
Ask about this product
Description
FEATURES
• To reduce the overall weight the slide and beam are made from aluminum and are coated with a hard anodized surface coating (1100 HV)
• Vernier and scale have a satin chrome finish for glare free reading
• Parallax free reading
• Locking screw above
• Prisma guideway for a more smooth and even movement
• Measuring surfaces made of steel
• Measuring blades for outside measurements
• Package contains: up to 1000 mm delivered with a case, over 1000 mm individually packed
Technical details
Description
Symbol
Value
Weight
WT
9.6 kg
Measuring range
0 - 2000 mm
Graduation value
0,02 mm
Error limit
0,16 mm
Standard
Factory standard
Internal measurement blades
Yes
Depth rod
None
Calibration certificate
None
Jaw length
a
15 mm
Jaw length
b
200 mm
Jaw Height
c
30 mm
Length
d
2260 mm
Width
e
48,1 mm
Jaw length
f
85 mm
Jaw height
i
40 mm
