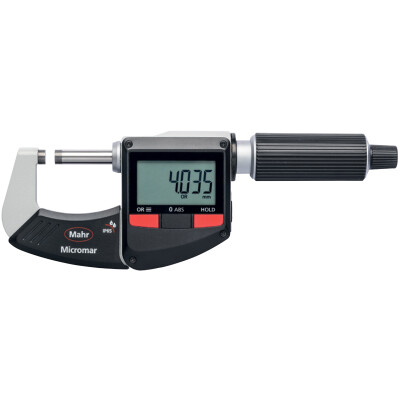

Digital outside micrometer, IP65

4157011

EAN-code: 4157011-Mahr
Mahr icon 14 Mahr icon 15 Mahr icon 5 Mahr icon 7

FUNCTIONS
• RESET (set display to zero)
• ABS (display can be set to zero without losing reference to preset)
• mm/inch
• PRESET (for entering a numerical value)
• LOCK function (key lock)
• HOLD (storage of measured values)

VAT 0% 243,50 €
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

FEATURES
• High contrast analog display
• Stainless spindle is hardened throughout and ground
• Spindle and anvil are carbide-tipped
• Rapid drive
• Ratchet is integrated in the thimble
• Lacquered steel frame, heat insulated
• Digit height: 10 mm
• Energy supply: Battery life approx. 2 years
• IP protection category: IP 65
• Package contains: instruction manual, battery, setting standard (from measuring range of 25– 50 mm), case

Technical details
Description Symbol Value
Weight
WT
0,61799999999999899 kg
Measuring range
0 - 25 mm
IP protection category
IP65
Data transfer
None
Graduation value
0,001 mm
Error limit
2 μm
Spindle thread
Pitch
0,5 mm
Measuring force
5 - 10 N
Standard
Factory standard
Calibration certificate
None

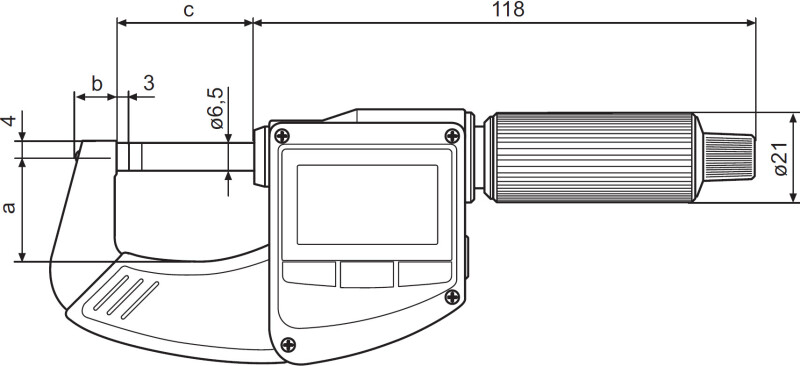

Frame depth
a
24 mm
Jaw width
b
9,5 mm
Frame width
c
32 mm
