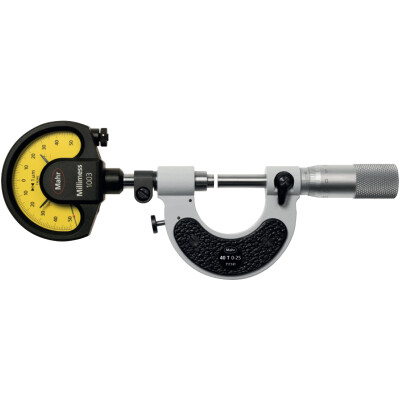

Analog outside micrometer with integrated dial comparator
4154001KAL
EAN-code: 4154001KAL-Mahr
Application:
• Quick check of diameter of cylindrical parts (shafts, bolts, shanks)
• Thickness and length measurements
• Particularly suitable for exact series components
VAT 0%
1014,25 €
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
FEATURES
• Operating and display units with satin chrome finish
• Retraction of the movable anvil ensures maximum wear resistance
• Constant measuring force
• Stainless spindle is hardened throughout and ground
• Spindle and anvil are carbide-tipped
• Locking device
• Package contains: instruction manual, case
Technical details
Description
Symbol
Value
Weight
WT
1.3080000000000001 kg
Measuring range
25 - 50 mm
IP protection category
None
Graduation value
0,01 mm
Error limit
2 μm
Parallelism deviation
2 μm
Flatness deviation
0,2 μm
Spindle thread
Pitch
0,5 mm
Measuring force
6,5 N
Standard
DIN 863 - 3
Indicating instrument
Included in package
Millimess 1003
Dial comparator measuring range
± 50 μm
Graduation value
1 μm
Error limit
Ge
1 μm
Calibration certificate
Yes

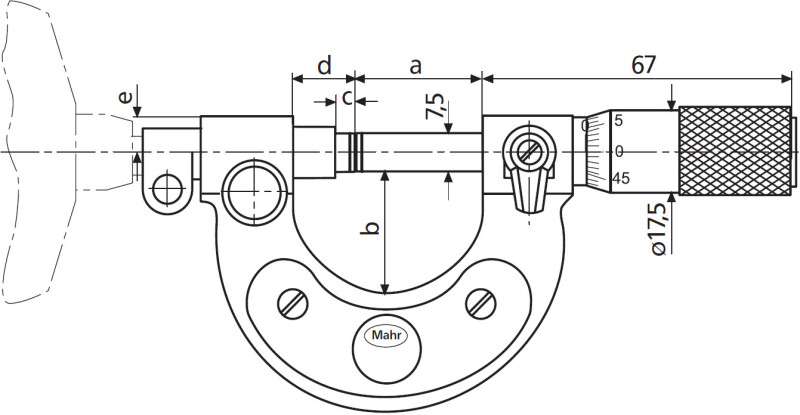

Frame width
a
52 mm
Frame depth
b
40 mm
Jaw width
c
4 mm
Jaw width
d
11 mm
