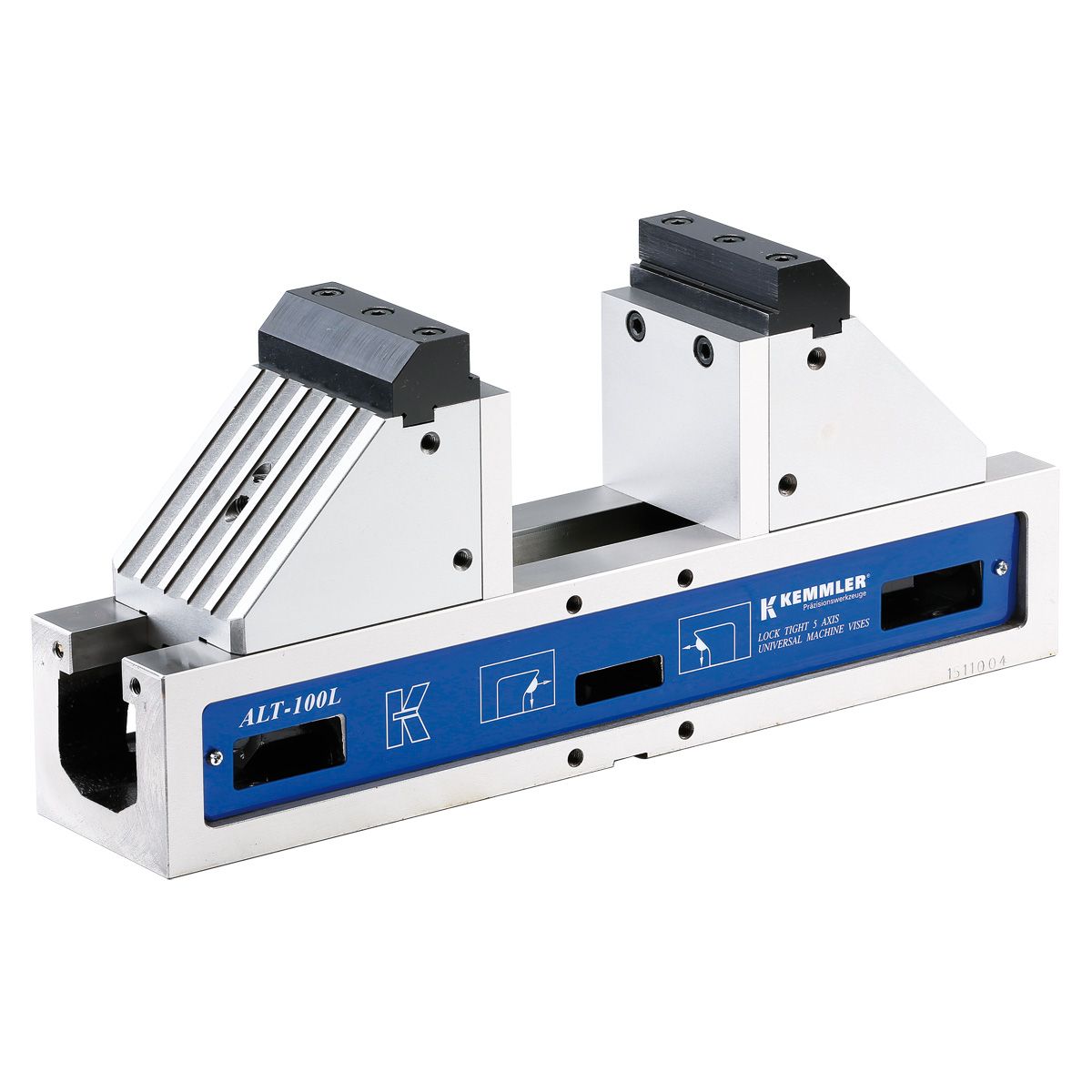

5-Axis precision vice ALT-100L
KS20101
EAN-code: 4250001113544
mechanical
VAT 0%
5108,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Construction:
- Clamping positions: horizontal, vertical and lateral
- The steel body is hardened and grinded all-round
- Integrated pull-down mechanism
- Bed height H: 0,01 mm
Delivery:
- Instructions for use
- Wrench
- 4 pcs. vice clamps
- 4 pcs. T-nuts 18 mm
- Test certificate
Technical details
Description
Symbol
Value
Fig
Malli
ALT-100L
Clamping force
20 kN
Measure
A
484 mm
Measure
B
104 mm
Measure
C
102 mm
Measure
D
90
Measure
E
180 mm
Measure
F
125 mm
Measure
L
500 mm
Measure
G
242
Measure
I
24
Measure
J
16
Measure
K
18
Measure
N
14
Measure
O
10-232
Measure
P1
0-200
Measure
P2
12-200
Measure
P3
10-210
