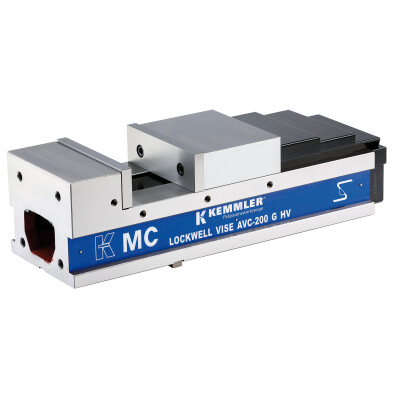

Precision vice AVC-G/HV

KS16010

EAN-code: 4250001090401
mechanical
VAT 0% 2007,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Construction:

  • Clamping positions: horizontal, vertical and lateral
  • The steel body is hardened and grinded all-round
  • Integrated pull-down mechanism
  • Bed height H: 0,01 mm

Delivery:

  • Instructions for use
  • Wrench
  • 4 pcs. vice clamps
  • 4 pcs. T-nuts 18 mm
  • Test certificate
Technical details
Description Symbol Value
Fig
Malli
AVC-160G/HV
Measure
A
495 mm
Measure
B
161 mm
Measure
C
160 mm
Measure
D
576
Measure
E
160 mm
Measure
F
81 mm
Measure
L
130 mm
Measure
G
80
Measure
I
85
Measure
J
15
Measure
K
18
Measure
M
58
Measure
N
19
Measure
O
245
Measure
T
25
Measure
U
90
Measure
P1
250-480
Measure
P2
250-370
Measure
P3
250-330
