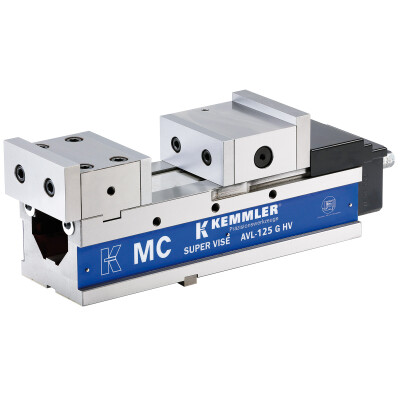

Precision vice AVL-G/HV

KS05030

EAN-code: 4250001089948
mechanical
VAT 0% 1699,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Construction:

  • Clamping positions: horizontal, vertical and lateral
  • The steel body is hardened and grinded all-round
  • Integrated pull-down mechanism
  • Bed height H: 0,01 mm

Delivery:

  • Instructions for use
  • Wrench
  • 4 pcs. vice clamps
  • 4 pcs. T-nuts 18 mm
  • Test certificate
Technical details
Description Symbol Value
Fig
Malli
AVL-160G/HV
Measure
A
485 mm
Measure
B
161 mm
Measure
C
159.5 mm
Measure
D
625
Measure
E
168 mm
Measure
F
120 mm
Measure
L
80 mm
Measure
G
76
Measure
I
86
Measure
J
18
Measure
K
18
Measure
M
53
Measure
N
21
Measure
O
295
Measure
P
479
Measure
Q
25
Measure
R
63
Measure
S
20
Measure
T
26.5
Measure
U
98.4
