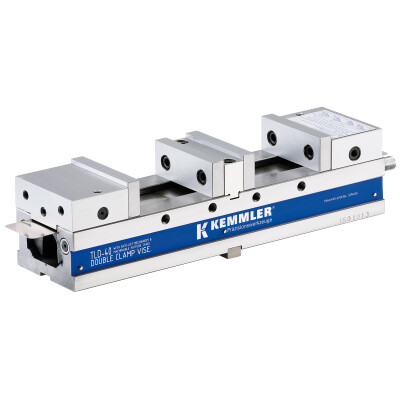

Twin vice TLD-G/HV

KS09010

EAN-code: 4250001090159
mechanical
VAT 0% 1699,00 €
Checking availability
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Construction:
- Double-clamping via two mobile and one fixed jaw.
- Clamping positions: horizontal, and vertical
- The steel body is hardened and grinded all-round
- Integrated pull-down mechanism
- Repeating accuracy 0,01 mm
- Clamping accuracy at the centre 0,01 mm
- Bed height H: 0,01 mm


Delivery:

  • Instructions for use
  • Wrench
  • 4 pcs. vice clamps
  • 4 pcs. T-nuts 18 mm
  • Test certificate
Technical details
Description Symbol Value
Fig
Malli
TLD-40G/HV
Measure
A
405 mm
Measure
B
104 mm
Measure
C
102 mm
Measure
D
459
Measure
E
96.5 mm
Measure
F
54 mm
Measure
L
69 mm
Measure
G
27.5
Measure
I
55
Measure
J
15
Measure
K
18
Measure
M
38
Measure
N
14
Measure
O
90
Measure
P
235
Measure
T
17.5
Measure
U
63.5
