0321000

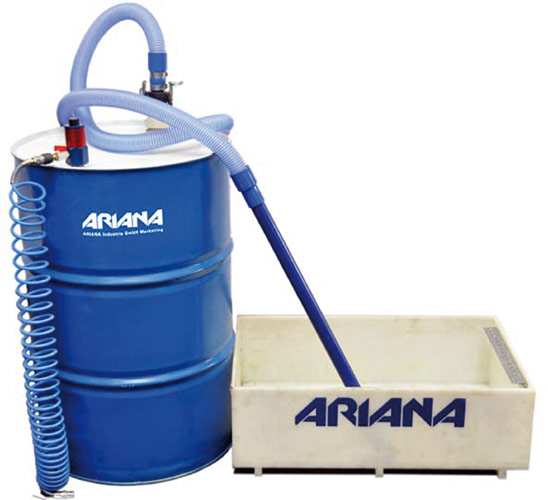

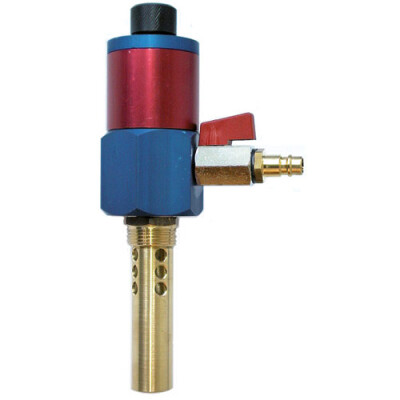

The ARIANA Power Vac Pump is a dual-acting suction and pressure
pump that uses compressed air. It is mainly used for filling
and emptying lubricant and coolant tanks. The pump was designed
for fast and trouble-free installation at standard barrels.

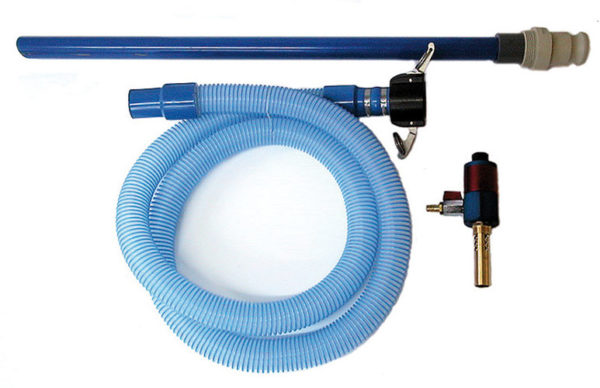

It is screwed into the bunghole of the barrel and connected to
the compressed air supply. A feed hose is attached at the other
barrel opening.
The Power Vac Pump requires compressed air at approx. 8 bar.
This makes it possible to fill or empty at approx. 60 l/min. An
automatic closing valve serves as an inlet/outlet control and thus
prevents overflows.
The Power Vac Pump generates a vacuum in the tank, as a result
of which it is possible to suction used coolants, mud, metal
residues, etc. out of machine tanks as well as excess liquids out
of chemical tanks.
By simply turning a knob, the operator can reverse the function
and generate overpressure in the tank, as a result of which it is
possible to pump lubricants and coolants as well as liquid chemicals
into the machine. The Power Vac Pump can also be used
in explosion-protected areas.
