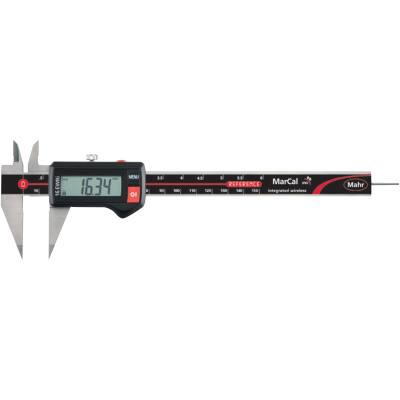

Digital caliper with data transfer, IP67

4103375

EAN-code: 4103375-Mahr
Mahr icon 3 Mahr icon 4
Mahr icon 2 Mahr icon 5 Mahr icon 6 Mahr icon 7

Application:
With pointed jaws e.g. for measuring distances between grooves
FUNCTIONS
• ON/OFF
• AUTO-ON / OFF
• HOLD (storage of measured values)
• RESET (set display to zero)
• PRESET (for entering a numerical value)
• mm/inch
• LOCK function (key lock)
• DATA (data transmission)

VAT 0% 582,00 €
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

FEATURES
• High contrast digital display
• Locking screw above
• Lapped guideway
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide
• Software MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
• Digit height: 11 mm
• Data interface: Integrated wireless
• Energy supply: Battery life approx. 3 years (approx. 0.5 in wireless mode)
• IP protection category: IP 67
• Package contains: battery, instruction manual, case

Video
Appendices
Technical details
Description Symbol Value
Weight
WT
0.39100000000000001 kg
Measuring range
0-150 mm
IP protection category
IP67
Data transfer
Wireless
Graduation value
0,01 mm
Error limit
0,03 mm
Standard
Factory standard
Depth rod
Round
Friction wheel
None
Calibration certificate
None
Jaw length
a
10 mm
Jaw length
b
40 mm
Jaw length
c
16,5 mm
Length
d
235 mm
Width
e
16 mm
