4157050DKS
FUNCTIONS
• RESET (set display to zero)
• ABS (display can be set to zero without losing reference to ORIGIN)
• mm/inch
• ORIGIN (for entering a numerical value)
• LOCK function (key lock)
• TOL (tolerance and warning limits)
• HOLD (storage of measured values)
• DATA (data transmission)
• Bi-directional data interface (external input option of characteristic values and setting of individual lock functions by software MarCom)
Application:
Universal adjustment to different workpiece and measurement situations using individual interchangeable measuring anvils.
Thread flanks and spherical measuring anvils (optional accessories) can also be used.
Ask about this product
Description
FEATURES
• High contrast analog display
• Stainless spindle is hardened throughout and ground

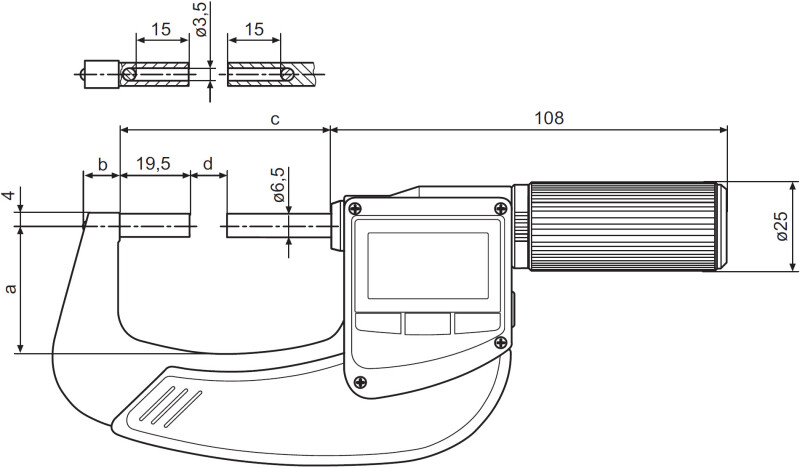

• With mounting bores for measuring anvils with a shaft Ø 3.5 mm
• QUICK DRIVE
• Sliding spindle
• Ratchet is integrated in the thimble
• Lacquered steel frame, heat insulated
• Software MarCom Professional free download: www.mahr.com/marcom (only for Mahr data cables and wireless systems with USB and RS232 interface)
• Digit height: 10 mm
• Data interface: Integrated wireless
• Energy supply: Battery life approx. 3 years (approx. 0.5 in wireless mode)
• IP protection category: IP 65
• Scope of deliveryFor each pair of measuring anvils:
- 40 Ef flat Ø 6.5 mm
- 40 Ea offset Ø2 x 4 mm
- 40 Et plate Ø 11.3 mm
- 40 Eb spherical R=5 mm
- 40 Ep tapered 60 ° Ø 0.3 – 5.5 mm
- 40 Es blade 0.75 x 4 mm

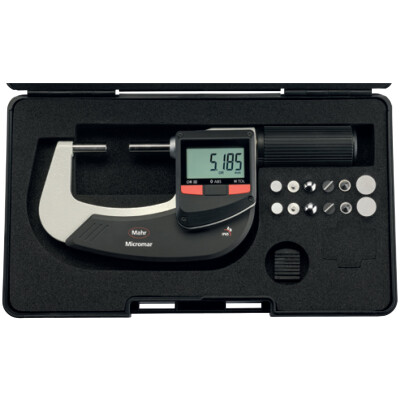

• Package contains: instruction manual, battery, case
