Minicut-kierresorvausterä – osaprofiili, ISO-metrinen 60°
SXX.ISO60.01/AL41F
ISO-metrinen 60° osaprofiili kierresorvausterä
TIALN -pinnoitteella - Yleiskäyttöinen, kestää hyvin korkeita lämpötiloja ja kovuutta
Sopiva myös ei-rautametalleille.

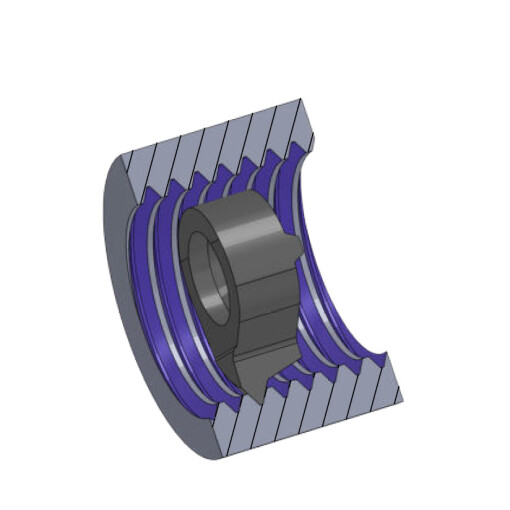

Kuvassa oikeakätinen terä.
P
M
K
N
S
H
O
-
Dmin mmDmin mmWT kgP mm
-
LS07.0205.01/AL41F
Dmin mm7Dmin mm7,0WT kg1.1999999999999999E-3P mm0,5 - 0,7517,60 €
-
LS07.0510.01/AL41F
Dmin mm7Dmin mm7,0WT kg1.1999999999999999E-3P mm1,0 - 1,2517,60 €
-
LS07.0815.01/AL41F
Dmin mm7Dmin mm7,0WT kg1.1999999999999999E-3P mm1,5 - 1,7517,60 €
-
LS08.0205.01/AL41F
Dmin mm8Dmin mm8,0WT kg2.3999999999999998E-3P mm0,5 - 0,7517,60 €
-
LS08.0510.01/AL41F
Dmin mm8Dmin mm8,0WT kg1.1999999999999999E-3P mm1,0 - 1,2517,60 €
-
LS08.0815.01/AL41F
Dmin mm8Dmin mm8,0WT kg1.1999999999999999E-3P mm1,5 - 1,7517,60 €
-
LS09.0205.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm0,5 - 0,7517,60 €
-
LS09.0510.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm1,0 - 1,2517,60 €
-
LS09.0815.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm1,5 - 1,7517,60 €
-
LS09.0917.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm1,75 - 2,017,60 €
-
LS09.1020.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm2,0 - 2,517,60 €
-
LS09.1325.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm2,5 - 3,017,60 €
-
LS09.1630.01/AL41F
Dmin mm9Dmin mm9,0WT kg2.3999999999999998E-3P mm3,0 - 3,517,60 €
-
LS11.0205.01/AL41F
Dmin mm11Dmin mm11,0WT kg3.5999999999999999E-3P mm0,5 - 0,7517,60 €
-
LS11.0510.01/AL41F
Dmin mm11Dmin mm11,0WT kg3.5999999999999999E-3P mm1,0 - 1,2517,60 €
-
LS11.0815.01/AL41F
Dmin mm11Dmin mm11,0WT kg3.5999999999999999E-3P mm1,5 - 1,7517,60 €
-
LS11.1020.01/AL41F
Dmin mm11Dmin mm11,0WT kg2.3999999999999998E-3P mm2,0 - 2,517,60 €
-
LS11.1325.01/AL41F
Dmin mm11Dmin mm11,0WT kg2.3999999999999998E-3P mm2,5 - 3,017,60 €
-
LS14.0510.01/AL41F
Dmin mm14Dmin mm14,0WT kg4.7999999999999996E-3P mm1,0 - 1,2517,60 €
-
LS14.0815.01/AL41F
Dmin mm14Dmin mm14,0WT kg4.7999999999999996E-3P mm1,5 - 1,7517,60 €
-
LS14.1020.01/AL41F
Dmin mm14Dmin mm14,0WT kg4.7999999999999996E-3P mm2,0 - 2,517,60 €
-
LS14.1325.01/AL41F
Dmin mm14Dmin mm14,0WT kg4.7999999999999996E-3P mm2,5 - 3,017,60 €
-
LS16.0510.01/AL41F
Dmin mm16Dmin mm16,0WT kg6.0000000000000001E-3P mm1,0 - 1,2517,60 €
-
LS16.0815.01/AL41F
Dmin mm16Dmin mm16,0WT kg6.0000000000000001E-3P mm1,5 - 1,7517,60 €
