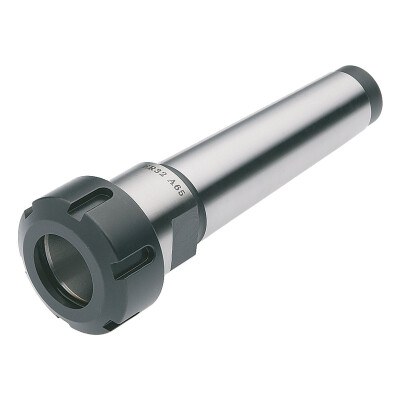

ER-Collet chuck, DIN 228-1A

108.02.04

EAN-kod: 4250001039844

MK
DIN 228-1A

VAT 0% 163,00 €

Kontrollerar lagersaldo

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Application:
For mounting straight-shank tools in collets.

With balanced clamping nut

Description Symbol Value

kroppsdiameter

BD

false mm

Type

430E, ER 25

Adaptive interface machine direction

ADINTMS

DIN 228-A

Adaptive interface workpiece direction

ADINTWS

ISO 15488 (DIN 6499) ER

Clamping Ø, nominal, workpc. side

DCONWS

2 - 16

Diameter lock nut

DLN

42 mm

Drive size

DRVS

32

Protruding length

LPR

63 mm

Clamping length machine side

LSC

MK 4

Concentricity

< 8µm

Connection thread nominal size

THSZMS

M16
