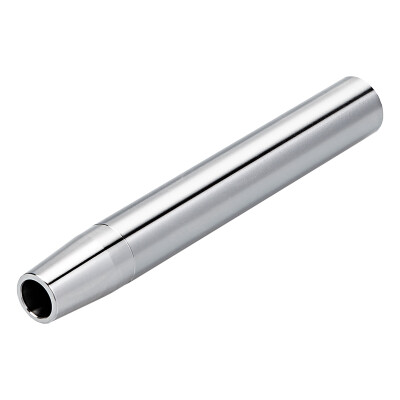

Shrink fit extensions 4,5°, only for solid carbide, >6mm with end stop

120.70.04

EAN-kod: 4250001033545

VAT 0% 95,00 €

Kontrollerar lagersaldo

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Application:
For mounting tools with straight shanks.

Note:
Toolholders suitable for induction-, contact- and hot air shrink units. Ø 3, 4, 5 with h4-tolerance and Ø 6 – Ø 32 with h6-tolerance

For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used!

Delivery:

Description Symbol Value

Adaptive interface machine direction

ADINTMS

Cylindrical shank

Adaptive interface workpiece direction

ADINTWS

Kutisteistukka 4,5°

Adjustment range, axial

ADJRGA

-

Body taper end diameter

BTED

10

Clamping Ø, nominal, workpc. side

DCONWS

4

Clamping length minimum machine side

LSCN

8 mm

Clamping length maximum machine side

LSCX

- mm

Thread designation inside

THID

-
