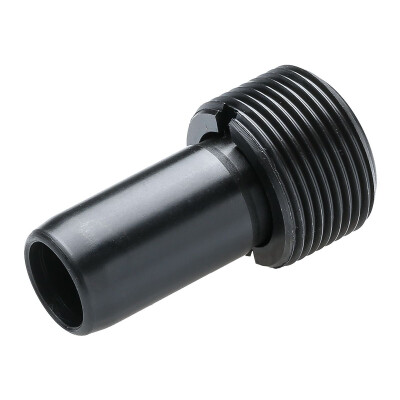

Coolant tube, DIN 69895
A100.700
EAN-kod: 4250001001605
HSK 100
DIN 69895
DIN 69895
VAT 0%
14,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the coolant supply through the centre of HSK toolholders.
Note:
Axial sealed with two O-rings. After mounting, the coolant tube can be moved only to a minimum degree according to DIN (±1°).
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Coolant pipe with 2 sealing rings, Special O-ring up to 120 bar, angular movement from ±1°, polished
Technical details
Description
Symbol
Value
Adaptive interface machine direction
ADINTMS
HSK 100
Adaptive interface workpiece direction
ADINTWS
Jäähdytysputki
Body diameter 1
BD1
16 mm
Torque maximum
TQX
30 Nm Nm
HSK
HSK 100
Thread designation outside
THOD
M24 × 1,5
