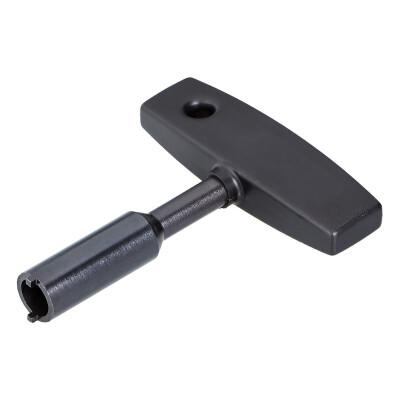

Key for coolant tube, DIN 69895

A100.701

EAN-kod: 4250001001636
HSK 100
DIN 69895
VAT 0% 24,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Application:
For mounting the coolant tubes in HSK toolholders.


  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Technical details
Description Symbol Value
kroppsdiameter
BD
22,0 mm
Adaptive interface machine direction
ADINTMS
HSK 100
Adaptive interface workpiece direction
ADINTWS
Jäähdytysputki
Functional length
LF
136 mm
HSK
HSK 100
