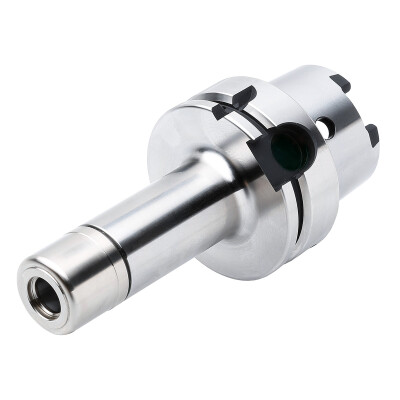

KPS-Collet chuck, ISO 12164 [DIN 69893], HSK-A

A50.03.16

EAN-kod: 4250001164737
HSK 50 - KPS
ISO 12164 [DIN 69893], HSK-A
VAT 0% 135,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Application:
For mounting straight-shank tools in collets. To use for high speed cutting and high precision milling.


Delivery:
With balanced clamping nut


  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined





Technical details
Description Symbol Value
Type
496EK, KPS 16
Adaptive interface machine direction
ADINTMS
ISO 12164 (HSK-A)
Adaptive interface workpiece direction
ADINTWS
KPS
Balance grade
G2,5, 30.000 1/min
Clamping Ø, nominal, workpc. side
DCONWS
4 - 16
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Diameter lock nut
DLN
40,0 mm
Protruding length
LPR
80 mm
Thread designation inside
THID
M18 x 1,50
max. concentricity deviation
< 3µm
HSK
HSK-A 50
