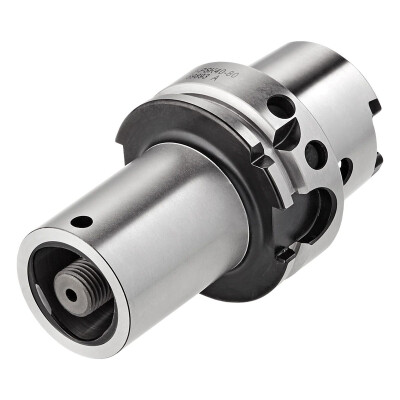

Adapters SK to ISO 26623 (PSK), ISO 12164 [DIN 69893], HSK-A

A63.09.C4

EAN-kod: 4250001162825

HSK 63 - PSK
ISO 12164 [DIN 69893], HSK-A

VAT 0% 390,00 €

Kontrollerar lagersaldo

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Description

Application:
For adaption from HSK-A to PSC (ISO 7388-1 to ISO 26623-1)

Delivery:
Clamping screw

Version:
Adapters HSK / PSK with axial clamping. Ground internally and externally. The internal thread provided for the coolant tube in the PSC toolholder is plugged with the socket-head screw incorporated in the adapter. The clamping screw incorporates a through hole, so the system is suitable for through-coolant feed.
Suitable for tool arbor with polygonal shank (PSC) - ISO 26623-1.

Technical details

Enlarge

Description Symbol Value

Type

PSK C4

Adaptive interface machine direction

ADINTMS

ISO 12164 (HSK-A)

Adaptive interface workpiece direction

ADINTWS

PSK C4

Balance grade

G6,3, 15.000 1/min

Clamping Ø, nominal, workpc. side

DCONWS

Data chip provision

DCP

Kyllä

Data chip provision size

DCPS

D10/H4,5

Protruding length

LPR

80 mm

Thread designation inside

THID

M14 x 1,5

Torque maximum

TQX

50 Nm Nm

max. concentricity deviation

< 3µm

HSK

HSK-A 63
