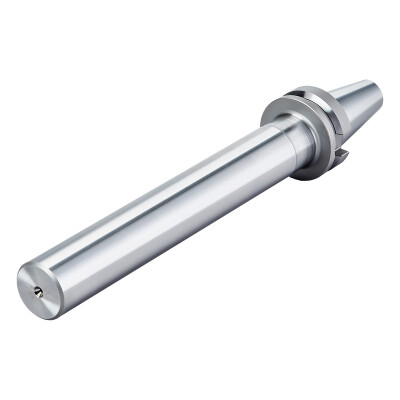

Test arbor, ~ ISO 7388-2 [JIS B 6339 A], DC
DC.305.18.32
EAN-kod: 4250001159337
BT 30 - 32 - 300
~ ISO 7388-2 J [JIS B 6339 A], DC
~ ISO 7388-2 J [JIS B 6339 A], DC
VAT 0%
480,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the inspection of machine tools according to ISO recommendation R230 or for testing the tool spindle.
Delivery with test certificate
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
DUAL CONTACT, with face contact
Technical details
Description
Symbol
Value
kroppsdiameter
BD
32 mm
Adaptive interface machine direction
ADINTMS
DUAL CONTACT ~ISO 7388-2
Adaptive interface workpiece direction
ADINTWS
Tarkistustuurna
Coolant entry style
CNSC
A
Protruding length
LPR
300 mm
Concentricity
< 3µm
SK
BT-DC 30
