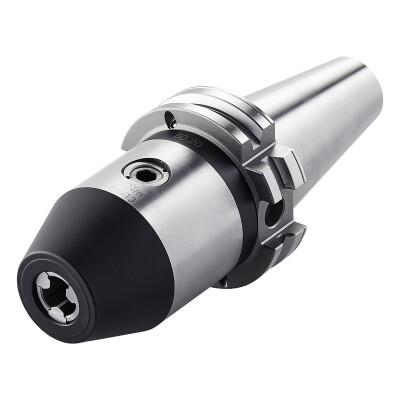

CNC-Drill chuck, ~ ISO 7388-1 [DIN 69871 AD/B], DC

DC.403.15.13

EAN-kod: 4250001160418
SK 40
~ ISO 7388-1 AD/B [DIN 69871 AD/B], DC
VAT 0% 280,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Application:
For mounting tools with straight shanks.


  • All holders are made of forged steel
  • Specific, low warpage hardened
  • Surface hardened HRC 58~60
  • Hardening depth 0,8mm~0,9mm
  • Taper angle tolerance < AT 3 according to DIN 2080
  • Surface roughness Ra < 0,4 µm
  • Tensile strength in the core of min. 800 N/mm² after DIN
  • All functional surfaces fine machined

DUAL CONTACT, with face contact
Technical details
Description Symbol Value
Adaptive interface machine direction
ADINTMS
DUAL CONTACT ~ISO 7388-1
Adaptive interface workpiece direction
ADINTWS
CNC-poraistukka
Balance grade
G6,3 | 15.000 1/min
Body diameter 1
BD1
31 mm
Body diameter 2
BD2
50 mm
Coolant entry style
CNSC
AD/B
Clamping Ø, nominal, workpc. side
DCONWS
1,0 - 13
Data chip provision
DCP
Kyllä
Data chip provision size
DCPS
D10/H4,5
Drive size
DRVS
6
Body length 1
LB1
26.2 mm
Body length 2
LB2
44.8 mm
Functional length
LF
71 mm
Protruding length
LPR
90 mm
Concentricity
< 30µm
SK
SK-DC 40
