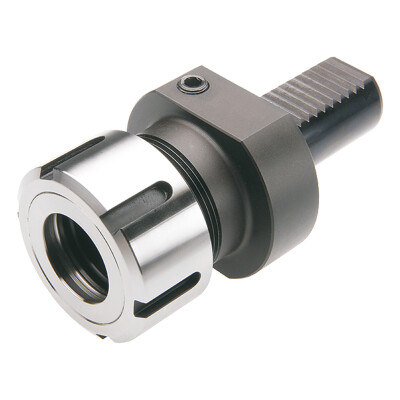

OZ-Collet chuck - form E3, DIN ISO 10889 [DIN 69880] - VDI

409.01.25

EAN-kod: 4250001008215

E3 - OZ
DIN ISO 10889 [DIN 69880] - VDI

VAT 0% 130,00 €

Kontrollerar lagersaldo

In stock, shipping time UPS Standard 1 week

You need to log in before purchasing. Request credentials here.

Ask about this product

Application:
For mounting straight-shank tools in collets.

Delivery:
With ball bearing clamping nut

Description Symbol Value

kroppsmaterialkod

BMC

Teräs

Koko

Storlek

E3 - 40 × 2 - 25

Type

462E, OZ 25

Utförande

Adaptive interface machine direction

ADINTMS

VDI 40

Adaptive interface workpiece direction

ADINTWS

ISO 10897 (DIN 6388) OZ

Clamping Ø, nominal, workpc. side

DCONWS

2 - 25

Diameter lock nut

DLN

60 mm

Protruding length

LPR

75 mm

Flange diameter

Flange thickness

FLGT

Body height 1

HTB1

32.5

Body height 2

HTB2

41.5
