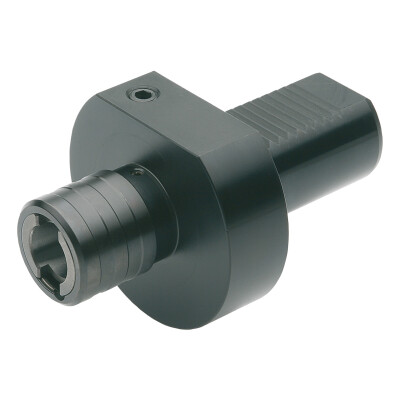

Quick change tapping chuck, DIN ISO 10889 [DIN 69880] - VDI
409.16.20
EAN-kod: 4250001008369
DIN ISO 10889 [DIN 69880] - VDI
VAT 0%
349,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For the chucking of quick change adaptors for taps.
with length compensation on compression and expansion
Technical details
Description
Symbol
Value
kroppsmaterialkod
BMC
Teräs
Utförande
N
Adaptive interface machine direction
ADINTMS
VDI 40
Adaptive interface workpiece direction
ADINTWS
Pikavaihto
Body diameter 2
BD2
53 mm
Clamping Ø, nominal, workpc. side
DCONWS
31
Length compensation compression
LCOMP
12 mm
Protruding length
LPR
81 mm
Capacity
M5 - M22
Nominal size
SZID
2
Flange diameter
DF
83
Flange thickness
FLGT
22
