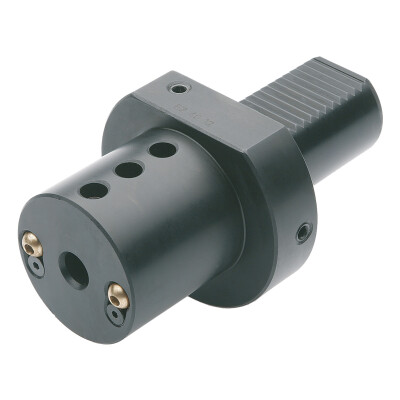

Boring bar holder - form E2, DIN ISO 10889 [DIN 69880] - VDI
169.52.06
EAN-kod: 4250001029876
E2 - 16
DIN ISO 10889 [DIN 69880] - VDI
DIN ISO 10889 [DIN 69880] - VDI
VAT 0%
67,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For internal machining with boring bars.
- All holders are made of forged steel
- Specific, low warpage hardened
- Surface hardened HRC 58~60
- Hardening depth 0,8mm~0,9mm
- Taper angle tolerance < AT 3 according to DIN 2080
- Surface roughness Ra < 0,4 µm
- Tensile strength in the core of min. 800 N/mm² after DIN
- All functional surfaces fine machined
Technical details
Description
Symbol
Value
kroppsmaterialkod
BMC
Teräs
Koko
Storlek
E2 - 16 × 06
Type
E2
Utförande
N
Adaptive interface machine direction
ADINTMS
VDI 16
Adaptive interface workpiece direction
ADINTWS
Sisäsorvaustyökalupidin
Body diameter 2
BD2
32 mm
Clamping Ø, nominal, workpc. side
DCONWS
6
Protruding length
LPR
44 mm
Flange diameter
DF
40
Flange thickness
FLGT
13
Body height 1
HTB1
18
Body height 2
HTB2
20
