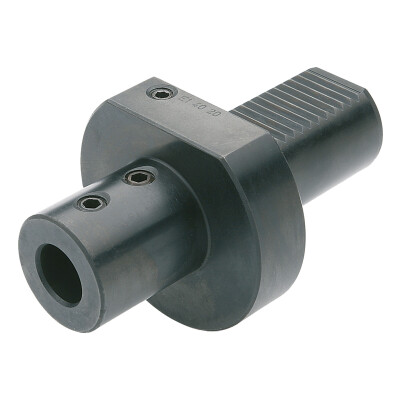

Boring holders - form E1, DIN ISO 10889 [DIN 69880] - VDI
309.51.16
EAN-kod: 4250001004378
E1 - 30
DIN ISO 10889 [DIN 69880] - VDI
DIN ISO 10889 [DIN 69880] - VDI
VAT 0%
85,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing.
Request credentials here.
Ask about this product
Ask about this product
Description
Application:
For mounting solid drills with cylindrical shank according to DIN 6595.
for drills with indexable inserts
Technical details
Description
Symbol
Value
kroppsmaterialkod
BMC
Teräs
Koko
Storlek
E1 - 30 × 16
Type
E1
Utförande
N
Adaptive interface machine direction
ADINTMS
VDI 30
Adaptive interface workpiece direction
ADINTWS
Poraistukka
Body diameter 2
BD2
36 mm
Clamping Ø, nominal, workpc. side
DCONWS
16
Protruding length
LPR
64 mm
Flange diameter
DF
68
Flange thickness
FLGT
22
Body height 1
HTB1
28
Body height 2
HTB2
30
