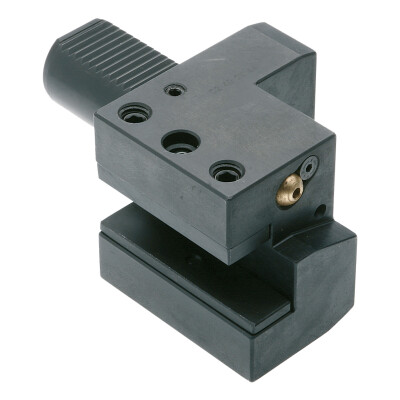

Axial toolholder - form C2 left, DIN ISO 10889 [DIN 69880] - VDI

509.42.32

EAN-kod: 4250001022808
C2
DIN ISO 10889 [DIN 69880] - VDI
VAT 0% 160,00 €
Kontrollerar lagersaldo
In stock, shipping time UPS Standard 1 week
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Description

Application:
Mainly for external machining. For face machining.

Technical details
Description Symbol Value
kroppsmaterialkod
BMC
Teräs
Koko
Storlek
C2 - 50 × 32
Type
C2
Utförande
L
Adaptive interface machine direction
ADINTMS
VDI 50
Adaptive interface workpiece direction
ADINTWS
Aksiaalinen työkalupidin
Functional length
LF
30.5 mm
Protruding length
LPR
100 mm
Overall width
OAW
105 mm
Functional height 1
HF1
32
Functional height 2
HF2
25
Body height 1
HTB1
35
Body height 2
HTB2
60
Radial body width
RADW
55
Radial offset width
RADWOF
16
