Produkter Skärverktyg Borrning Massivborrning Borrar med vändskär 4xDc B3214 B3214.DF.16,5.Z01.66R

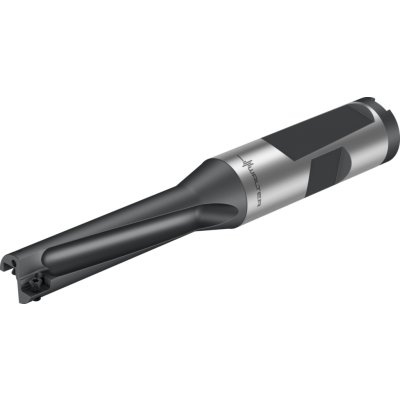

Borr

B3214.DF.16,5.Z01.66R

EAN-kod: 0423190766
D-drilling-blind-hole-indexable-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-plungedrilling-Icon D-rough-surface-Icon
D-4xDc-Icon D-Dc10-18-Icon D-M-Z1-Icon
P
M
K
N
S
H
O
VAT 0% 491,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
W-DI-B3214-DF-D-01
Enlarge
Description Symbol Value
Antal Indexerbara insatser - framsida
Number of WSP
1 EA
Antal Indexerbara insatser - omkretssida
Number of WSP
1 EA
Verktygsdiameter
Dc
16,5 mm
Kontaktdiameter
d1
16
Maximal projektionslängd
l4
82 mm
Spännlängd
l5
48 mm
Skärlängd
Lc
66 mm
Verktygsbeteckning
Designation
B3214.DF.16,5.Z01.66R
Möjliga Indexerbara insatser - framsida
Type
LCMX06T204- ..
Möjliga Indexerbara insatser - omkretssidan
Type
LCMX06T204- ..
Vikt
Weight
0,15 kg
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI LCGX E77 ANTHRA HIPIMS P 01
LCGX-E77
rektangulärt
Show variations
P
M
K
N
S
H
O
W-DI-LCMX-E57-TTG-PVD-P-01
LCMX-E57
rektangulärt
Show variations
P
M
K
N
S
H
O
W-DI-LCMX-D57-TTG-PVD-P-01
LCMX-D57
rektangulärt
Show variations
P
M
K
N
S
H
O
W-DI-LCMX-B57-TTG-PVD-P-01
LCMX-B57
rektangulärt
Show variations
P
M
K
N
S
H
O
AB016-J-P-01
AB016-J
MAS-BT JIS B 6339 hydraulisk expansionschuck
Show variations
AB016-S-P-01
AB016-S
DIN 69871 AD/B hydraulisk expansionschuck
Show variations
AB016-C-P-01
AB016-C
Walter CaptoTM hydraulisk expansionschuck ISO 26623-1
Show variations
AB016-H-P-01
AB016-H
DIN 69893-1 A hydraulisk expansionschuck
Show variations
AB017-J-P-01
AB017-J
Hydraulisk expansionsadapter MAS-BT JIS B 6339
Show variations
AB017-S-P-01
AB017-S
Hydraulisk expansionsadapter DIN 69871 AD/B
Show variations
AB044-H-P-01
AB044-H
Weldon-hållare DIN 69893-1 A
Show variations
AB017-H-P-01
AB017-H
Hydraulisk expansionsadapter DIN 69893-1 A
Show variations
AB044-J-P-01
AB044-J
Weldon-hållare MAS-BT JIS B 6339
Show variations
AB044-S-P-01
AB044-S
Weldon-hållare DIN 69871 AD/B
Show variations
W-A-391-20-CAPTO-P-01
AB044-C
Weldon-skafthållare
Show variations
W-A-FS2226-P-01
REDUZIERHUELSE-IK
Reduceringshylsor för invändig kylning
Show variations
AB019 HSK P 01
AB019-H
Hydraulisk expansionsadapter för slanka verktyg DIN 69893-1 A
Show variations
W A A170M NCT P 01
A170M.0
Weldon-skafthållare
Show variations
W A 391 20 CAPTO P 01
391.20-CAPTO
Weldon-skafthållare
Show variations
W A AK182 SK P 01
AK182-SK
Hydraulisk expansionschuck DIN 69871
Show variations
W A AK182 HSK P 01
AK182-HSK
Hydraulisk expansionschuck DIN 69893-1 A
Show variations
W A AK182 CAPTO P 01
AK182-C
Hydraulisk expansionschuck Walter CaptoTM ISO 26623-1
Show variations
W A AK182 BT P 01
AK182-BT
Hydraulchuck MAS-BT JIS B 6339
Show variations
W-A-FS722-P-01
EXZENTERHUELSE
Excenterhylsa
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Nyckel
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Skruvar utan huvud
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Skruvar med huvud
Show variations
