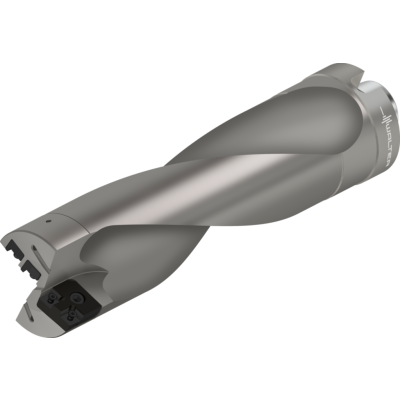

Vändskärsborr med kassett

D4170-03-78.00N8-P46 NEW 2021

EAN-kod: 0818338766
D-drilling-blind-hole-indexable-Icon D-drilling-cross-hole-Icon D-drilling-inclination-exit-Icon D-drilling-plungedrilling-Icon D-rough-surface-Icon
D-3xDc-Icon D-Dc65-80-Icon D-M-Z1-Icon
P
M
K
N
S
H
O
VAT 0% 1601,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Antal vändskär
No. of inserts
3 PCE
Antal vändskär
No. of inserts
1 PCE
Verktygsdiameter
Dc
78 mm
Kontaktdiameter
d1
80 mm
Största överhäng
l4
284 mm
Skärlängd
Lc
234 mm
Verktygsbeteckning
Designation
D4170-03-78.00N8-P46
Möjliga vändskär
Type
P484 . P-6R- ..
Möjliga vändskär
Type
P484 . C-6R- ..
Vikt
WT
6,13 kg
Kontaktstorlekskod
d1
NCT 80
Compatible products
Products
Adaptors
Accessories
Assembly parts
W DI P4840C E77 ANTHRA POL P 01
P4840C-E77
Kvadratisk
Show variations
P
M
K
N
S
H
O
W DI P4840P E77 ANTHRA POL P 01
P4840P-E77
Kvadratisk
Show variations
P
M
K
N
S
H
O
W-DI-P4841P-E57-TTG-PVD-P-01
P4841P - E57
Kvadratisk
Show variations
W-DI-P4841P-A57-TTG-PVD-P-01
P4841P - A57
Kvadratisk
Show variations
W-DI-P4841C-E57-TTG-PVD-P-01
P4841C - E57
Kvadratisk
Show variations
W-DI-P4841C-A57-TTG-PVD-P-01
P4841C - A57
Kvadratisk
Show variations
W-DI-P4840P-E67-TTG-PVD-P-01
P4840P - E67
Kvadratisk
Show variations
W-DI-P4840P-E57-TTG-PVD-P-01
P4840P - E57
Kvadratisk
Show variations
W-DI-P4840P-A57-TTG-PVD-P-01
P4840P - A57
Kvadratisk
Show variations
W-DI-P4840C-E67-TTG-PVD-P-01
P4840C - E67
Kvadratisk
Show variations
W A A100M2 SK P 01
A100M.2
Master DIN 69871-1 AD
Show variations
W A AK200M2 SK P 01
AK200M.2
Master DIN 69871-1 AD/B
Show variations
W-A-A101M-NCT-P-01
A101M.0
Förlängning
Show variations
W A A100M CAPTO P 01
A100M.8
Master Walter CaptoTM
Show variations
W A A100M HSK P 01
A100M.7
Master DIN 69893-1 A
Show variations
W A A100M4 SK P 01
A100M.4
Master MAS-BT JIS B 6339
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Nyckel
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Skruvar med huvud
Show variations
W MI FR731 ANTHRA P 01
EB100-CARTRIDGE
Kassett
Show variations
