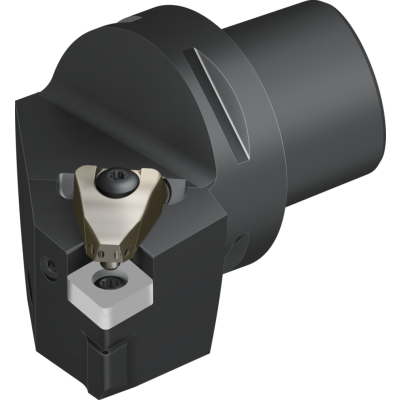

Svarvhållare – spännklampsutförande

C6-DCLNR-45065-16-P

EAN-kod: 0838499967
T-Ex-xCLx-Icon
PointCool-Icon T-WSP-CNMG-Icon
Walter CaptoTM Precisionskylning
VAT 0% 486,00 €
Kontrollerar lagersaldo
You need to log in before purchasing. Request credentials here.
Ask about this product
Ask about this product
Technical details
Description Symbol Value
Kontaktstorlekskod
d1
C6
Minsta diameter
Dmin
600 mm
Minsta diameter
Dmin2
600 mm
Spånvinkel, ortogonal
γ
-6 °
Lutningsvinkel
λs
-6 °
Funktionell längd
l4
65 mm
Verktygsbeteckning
Designation
C6-DCLNR-45065-16-P
Skärlägesstorlek
Insert seat size
16
Möjliga vändskär
Type
CN .. 1606 ..
Funktionell bredd
f
45 mm
Compatible products
Products
Adaptors
Accessories
Assembly parts
CNMM HU3 TTG2 P 01
CNMM-HU3
Rombiska negativa 80°
Show variations
CNMM HU7 TTG2 P 01
CNMM-HU7
Rombiska negativa 80°
Show variations
W-T-CNMG-MU5-TTG3-P-01
CNMG-MU5
Rombiska negativa 80°
Show variations
W-T-CNMG-RP7-TTG3-P-01
CNMG-RP7
Rombiska negativa 80°
Show variations
W-T-CNMG-RP5-TTG3-P-01
CNMG-RP5
Rombiska negativa 80°
Show variations
W-T-CNMG-RM5-TTG3-P-01
CNMG-RM5
Rombiska negativa 80°
Show variations
W T CNMG NRT SILVER P 01
CNMG-NRT
Rombiska negativa 80°
Show variations
W T CNMG NRS SILVER P 01
CNMG-NRS
Rombiska negativa 80°
Show variations
W-T-CNMG-MP5-TTG3-P-01
CNMG-MP5
Rombiska negativa 80°
Show variations
CNMG-MM5-SILVER-P-01
CNMG-MM5
Rombiska negativa 80°
Show variations
W T CNMG MK5 SILVER P 01
CNMG-MK5
Rombiska negativa 80°
Show variations
W T CNMA RK7 SILVER P 01
CNMA-RK7
Rombiska negativa 80°
Show variations
W T CNMA RK5 SILVER P 01
CNMA-RK5
Rombiska negativa 80°
Show variations
AB584-CAPTO-P-01
AB584-HSK-MASTER
Master HSK DIN 69893-1 A
Show variations
W A 391 02 CAPTO P 01
Show variations
W A 2090 CAPTO P 01
R/LC2090
Spännenheter
Show variations
W-A-2060VDI-CAPTO-P-02
R/LC20 GERADE-VDI
Spännenheter VDI DIN 69880
Show variations
W A 2060VDI CAPTO P 01
R/LC20 ABGEWINKELT-VDI
Spännenheter VDI DIN 69880
Show variations
W A 391 01 CAPTO P 01
391.01-CAPTO
Förlängning
Show variations
W-A-391-01-CAPTO-P-01
391.01-CAPTO-KURZ
Förlängning
Show variations
W A C6 390B 58 50040 P 01
390B.58/55-CAPTO
Master MAS-BT JIS B 6339 AD/B
Show variations
W-A-C6-390B-540-50050A-P-01
390.540-CAPTO-A
Master DIN 69871 AD/B
Show variations
W A C6 390B 140 50030 P 01
390B.140-CAPTO
Master DIN 69871 AD/B
Show variations
imageComingSoon big en US
Z_CLAMPS
Spännklamp
Show variations
imageComingSoon big en US
Z_CLAMPS
Spännklamp
Show variations
imageComingSoon big en US
Z_SHIM
Underläggsbricka
Show variations
W-EZ-Z-SCREW-WITH-HEAD-WH-P-01
Z_SCREW_WITH_HEAD
Skruvar med huvud
Show variations
W-EZ-Z-KEY-WH-P-01
Z_KEY
Nyckel
Show variations
imageComingSoon big en US
Z_SPRING
Fjäder
Show variations
W-EZ-Z-SCREWS-WITHOUT-HEAD-WH-P-01
Z_SCREWS_WITHOUT_HEAD
Skruvar utan huvud
Show variations
